Product Introduction

Basic Configuration and Scheme of Online Light Cleaning Machine [Basic Type] HDGX-200SP02 Main Performance Indicators:

1) Processing glass substrate with a width of 1100mm;

2) The assembly line speed is 1.5m/min, and the assembly line speed is adjustable;

3) The width of the assembly line is 1100mm;

4) Processing glass substrate with a thickness of 3.2mm;

5) The light source adopts dual wavelength (UVC+VUV) 240W, U-shaped lamp tube; 300W Light Cleaning Lamp Special Electronic Town

technical parameter

Basic Configuration and Scheme of Online Light Cleaning Machine [Basic Type] HDGX-200SP02

Main performance indicators:

1) Processing glass substrate with a width of 1100mm;

2) The assembly line speed is 1.5m/min, and the assembly line speed is adjustable;

3) The width of the assembly line is 1100mm;

4) Processing glass substrate with a thickness of 3.2mm;

5) The light source adopts dual wavelength (UVC+VUV) 240W, U-shaped lamp tube; 300W light cleaning lamp dedicated electronic ballast;

6) 18 sets of light sources;

7) UV irradiation area 1100mm (width) × 1300mm (length);

8) Single piece UV irradiation energy ≥ 1200mJ;

9) Sensor self induction feedback, automatic speed regulation of the conveyor belt (0.5-2.5 m/min), eliminating the accumulation of distance errors caused by speed fluctuations in the conveyor belt;

10) Can output or input linkage signals;

11) Exhaust system, adjustable air volume, connected to workshop exhaust system;

12) Real time monitoring of multi-point temperature;

13) UV light source fault monitoring, lamp failure alarm and indication; Production cycle: 10 weeks

【 Advanced Automation Configuration Type 】 HDGX-200SP04

Note: Most of the functions in the high-end model are optional.

1) Multi functional automatic control;

2) 14 inch LCD human-machine display interface;

3) Equipped with computer communication interface for remote monitoring;

4) Human computer interface condition monitoring;

5) Equipped with UV illumination monitoring;

6) O3 concentration monitoring;

7) Exhaust gas treatment device;

8) Outdoor exhaust terminal and host linkage;

Production cycle: 14 weeks

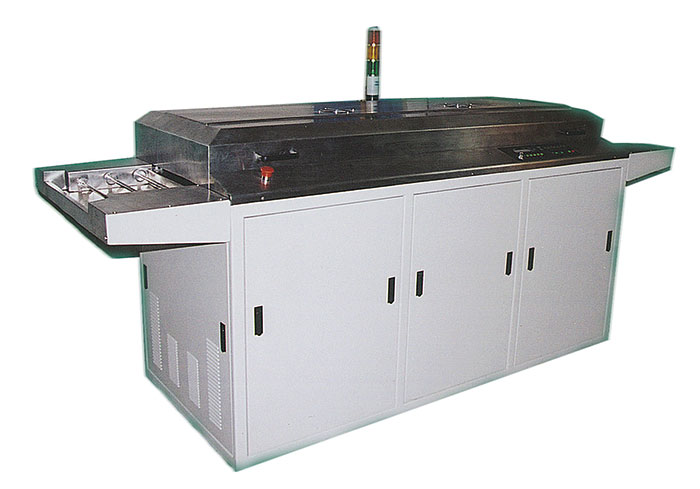

The basic form is shown in the figure: (This table has a width of 370mm)
